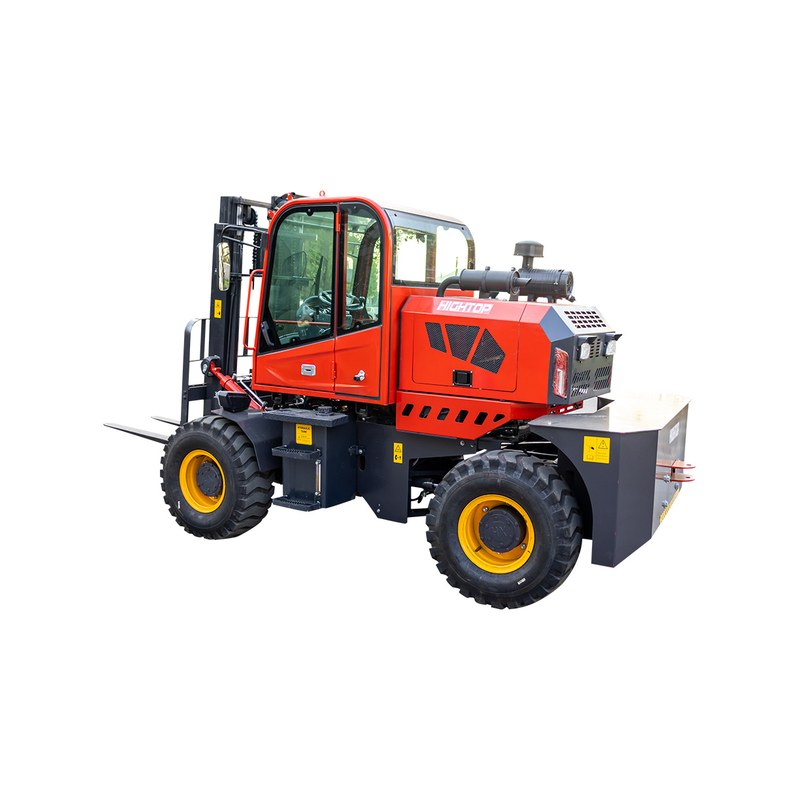

The HT-CPC3.5T Rough Terrain Forklift combines a 3,500 kg lifting capacity with four-wheel drive and a maximum lifting height of 3,000 mm. Its outdoor tires and 240 mm ground clearance suit construction sites, mines, orchards and rough industrial roads.
The HT-CPC3.5T Rough Terrain Forklift is a four-wheel-drive material-handling machine designed for construction sites, mines, orchards, pastures and industrial areas with rough roads. It has a maximum lifting capacity of 3,500 kg and a maximum lifting height of 3,000 mm.
A Huichai 490 engine with a rated output of 42 kW is supplied as the standard configuration. A Yunnei 490 engine rated at 37 kW is available as an optional configuration.
With four-wheel drive, 20.5/70-16 tires and a minimum ground clearance of 240 mm, the Rough Terrain Forklift is configured for outdoor loading, unloading and material transport on selected uneven or muddy work surfaces.
The HT-CPC3.5T has a maximum lifting capacity of 3,500 kg. This capacity supports the handling of suitable construction materials, industrial goods, agricultural supplies and other loads within the machine’s specified limit.
The load weight, dimensions and center of gravity should remain within the applicable operating requirements. The 1,220 mm forks provide the main supporting surface for pallets and suitable materials.
| Lifting parameter | Specification |
|---|---|
| Maximum lifting capacity | 3,500 kg |
| Maximum lifting height | 3,000 mm |
| Fork length | 1,220 mm |
| Mast width | 160 mm |
| Mast lowered height | 2,200 mm |
| Forward tilt angle | 12° |
The 3,000 mm lifting height allows the Rough Terrain Forklift to raise and position suitable loads at different working heights.
The standard engine is a Huichai 490 rated at 42 kW. A Yunnei 490 engine with a rated output of 37 kW is listed as an alternative.
| Engine option | Rated output |
| Huichai 490 | 42 kW |
| Yunnei 490 | 37 kW |
The engine option should be confirmed before production. Buyers can select between the listed configurations according to order requirements and availability.
The engine supplies power to the four-wheel-drive system, transmission and hydraulic lifting functions of the Rough Terrain Forklift.
The HT-CPC3.5T uses four-wheel drive. This drive configuration distributes driving force through the machine’s outdoor travel system and supports movement across selected construction roads, farm paths and rough industrial surfaces.
Four-wheel drive distinguishes the machine from forklifts intended mainly for smooth indoor floors. The working surface, slope and load position should still remain within the equipment’s operating limits.
The Rough Terrain Forklift is equipped with a heavy cast-steel axle as part of its travel and load-supporting structure.
The machine uses a 265 high- and low-speed gearbox. The available ranges allow the operator to select a suitable travel setting according to the load and worksite conditions.
The transmission works with the four-wheel-drive system to support movement, positioning and material transport around outdoor work areas.
The HT-CPC3.5T is fitted with 20.5/70-16 tires. These tires form the contact point between the machine and the working surface.
The tire configuration supports travel across selected rough, unpaved and muddy areas. Tire condition and pressure should be inspected before the Rough Terrain Forklift begins loading or transport work.
| Travel parameter | Specification |
| Drive mode | Four-wheel drive |
| Tire size | 20.5/70-16 |
| Gearbox | 265 high and low speed |
| Axle | Heavy cast-steel axle |
| Minimum ground clearance | 240 mm |
| Listed climbing angle | Less than 35° |
| Turning radius | 4,500 mm |
The machine has a minimum ground clearance of 240 mm. This clearance provides space beneath the chassis when traveling across selected uneven ground or small surface obstacles.
The available ground clearance should be considered together with tire size, load weight and terrain. The operator should inspect the intended travel route before moving the machine.
The raised outdoor chassis is one of the structural differences between this Rough Terrain Forklift and a conventional warehouse forklift.
The listed climbing angle is less than 35 degrees. This specification supports movement across selected inclined work areas within the machine’s operating limits.
Slope condition, traction, load distribution and travel direction should be evaluated before the forklift travels on an incline. Loads should remain stable and properly positioned during movement.
The HT-CPC3.5T measures 3,900 × 1,800 × 2,450 mm. Its overall machine weight is 4,410 kg, and the mast has a lowered height of 2,200 mm.
| Dimension | Specification |
| Overall length | 3,900 mm |
| Overall width | 1,800 mm |
| Overall height | 2,450 mm |
| Overall machine weight | 4,410 kg |
| Turning radius | 4,500 mm |
| Mast lowered height | 2,200 mm |
| Minimum ground clearance | 240 mm |
These dimensions should be considered when planning site access, machine transport, turning space and equipment storage.
The 4,500 mm turning radius defines the space required for maneuvering the Rough Terrain Forklift around suitable outdoor loading areas.
The listed frame articulation is 300 mm at the front and 250 mm at the rear. The machine also has a forward mast tilt angle of 12 degrees.
These movement specifications support load positioning and operation within the forklift’s defined range. The mast and forks should be positioned according to the load and work area.
The HT-CPC3.5T can be used to load, unload and transport suitable materials around construction sites. Its four-wheel-drive system, outdoor tires and 240 mm ground clearance support movement on selected unpaved construction roads.
The Rough Terrain Forklift can handle loads weighing up to 3,500 kg and lift them to a maximum height of 3,000 mm.
The machine can support selected loading and material-transport tasks at mines and industrial sites with rough access roads. Its cast-steel axle, four-wheel drive and high- and low-speed gearbox form the main outdoor travel configuration.
The work area should provide enough space for the machine’s 4,500 mm turning radius and overall dimensions.
The forklift can be used for selected material-handling work in orchards and pastures. Its outdoor chassis and four-wheel-drive system support travel on suitable farm paths and unpaved surfaces.
Loads should remain within the 3,500 kg maximum capacity, and the travel route should be checked before operation.
The Rough Terrain Forklift can also be considered for outdoor material-handling areas at airports, docks and stations where surface conditions differ from a smooth warehouse floor.
Its 1,220 mm forks and 3,000 mm lifting height support suitable loading and unloading tasks within the machine’s specifications.
The wide machine body can support suitable wide or irregular loads when they are correctly positioned on the forks. Load dimensions, weight and balance should be evaluated before lifting.
The maximum rated load must not be exceeded, and the load center should remain within the operating requirements supplied for the machine.
The HT-CPC3.5T combines outdoor travel capability with a 3,500 kg lifting capacity. Its main product specifications include:
These specifications support material loading, unloading and transport across selected construction, mining, agricultural and industrial environments.
The HT-CPC3.5T Rough Terrain Forklift provides a 3,500 kg maximum lifting capacity and a maximum lifting height of 3,000 mm. It is available with a standard Huichai 490 engine or an optional Yunnei 490 engine.
A four-wheel-drive system, outdoor tires, a high- and low-speed gearbox and 240 mm ground clearance support work on selected rough surfaces. The machine can be used for suitable material handling at construction sites, mines, orchards, pastures, airports, docks, stations and industrial facilities.
